X-Jet M5
Log in for pricing
- SKU
- XM5
- Weight
- 8.80 Ounces
- Dimensions
- 5.38 × 2.38 × 1.25
- Compatibility
- 1,000–6,000 PSI, hot or cold water
The X-Jet M5 is a variable long-range external chemical injection nozzle engineered to convert pressure washers into versatile soft washing systems.
Features an integrated rotating outer shroud collar that continuously adjusts the spray pattern from a 0° pinpoint stream to a 60° wide fan pattern.
Eliminates loose close-range nozzle attachments, allowing operators to transition smoothly between washing multi-story peaks and applying wide fan sprays on low siding without swapping tips.
Protects your pressure washing rig by siphoning chemicals directly at the wand discharge head, keeping harsh solutions out of your pump, high-pressure hose, reels, and gun.
Projects cleaning solutions up to 40 feet or more from the ground and includes a complete kit with a 15-foot suction hose, shut-off valve, strainer, and color-coded proportioner tips.
Nozzle Mechanism: Integrated rotating outer shroud collar for variable pattern adjustment.
Spray Patterns: Continuously variable from a 0-degree stream (long-range) to a 60-degree wide fan (producing an 8-foot-wide fan at close range).
Operating Pressure: Rated for pressure washers operating between 2,000 and 4,000 PSI (compatible across 800 to 5,000+ PSI machines).
GPM Compatibility & Kit Sizing: Calibrated internal orifice sizes match your machine's flow rate for optimal suction and reach:
Kit #7: 1.0 – 2.8 GPM (15–20 ft vertical reach)
Kit #9: 3.0 – 3.5 GPM (15–20 ft vertical reach)
Kit #13: 4.0 – 4.5 GPM (35–40 ft vertical reach)
Kit #16: 5.0 – 6.5 GPM (35–40 ft vertical reach)
Kit #20: 7.0 – 8.0 GPM (~40 ft vertical reach)
Kit #25: 8.5+ GPM (40+ ft vertical reach)
Vertical Reach: Reaches up to 40 feet or more from the ground depending on machine GPM.
Max Temperature: Rated up to 190°F for hot or cold water applications.
Connections: 1/4" Quick-Connect plug inlet; 1/8" MPT x 3/8" hose barb chemical port.

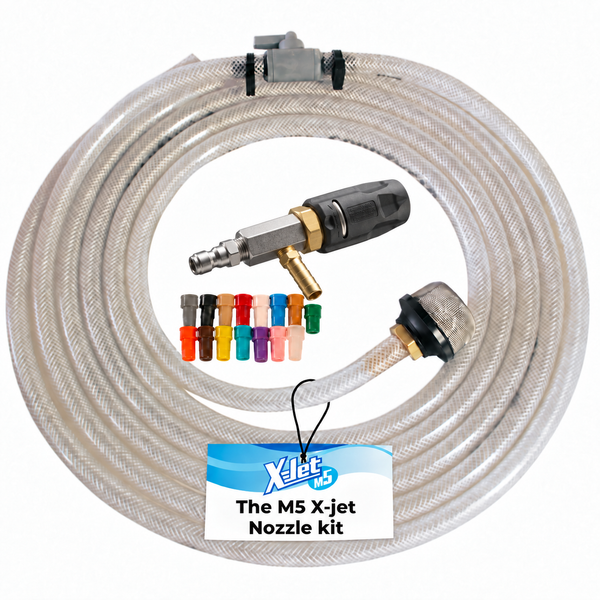

Included Components: M5 variable nozzle body, 15-foot clear vinyl suction hose (3/8" ID), inline poly shut-off ball valve, mushroom strainer screen, and 14–15 color-coded proportioner tips.
Venturi External Injection: High-velocity water passing through the internal precision orifice creates a localized vacuum at the chemical hose barb, siphoning detergent from an adjacent bucket or pail through the 15-foot vinyl hose.
Complete System Protection: Siphoning and chemical mixing occur at the nozzle head immediately prior to atmospheric discharge, ensuring corrosive liquids (such as sodium hypochlorite) never pass through your pump, hose, reels, or spray gun.
On-the-Fly Variable Pattern Adjustment: Rotating the outer shroud adjusts the discharge pattern continuously—twist closed for a tight 0° stream throwing up to 40+ ft to reach upper peaks and rooflines, or twist open for a soft 60° fan pattern to rinse delicate siding up close.
Precision Proportioning: Inserting interchangeable color-coded proportioner tips into the chemical barb adjusts the suction diameter, allowing you to dial in exact water-to-chemical dilution ratios (ranging from 0.8:1 / 1.6:1 down to 480:1 / 100:1), or run "open" without a tip for maximum draw strength.
Products manufactured by X-Jet Technologies, Inc are warrantied for 90 days from date of shipment or purchase date from your distributor when properly installed, maintained, and operated in accordance with X-Jet Technologies instructions. In no event will X-Jet Technologies have a warranty obligation for normal wear and tear, or for products that have, at our determination, been subjected to accident, abuse, modification, improper installation, or improper maintenance including but not limited to corrosion due to not rinsing the parts after each use and improper storage causing damage. Shipping back to our facility for inspection is the responsibility of the customer. Contact the supplier you purchased from to obtain a Return Good Authorization (RGA). No material is accepted without the proper RGA (Return Goods Authorization).
Equipment which proves to have a manufacturer’s defect upon our inspection will be repaired or replaced free of charge and returned to you via ground shipping. If it is determined the issue is NOT a manufacturer’s defect, return shipping will be the customer’s responsibility. Our liability ceases upon delivery to any common carrier. If special shipping such as Next Day Air or insured shipping are required, the customer will pay for such charges.
X-Jet Technologies makes no warranties, expressed or implied, other than those included in this warranty statement, and assumes no liability in the cleaning or chemical application with X-Jet products as use and conditions are beyond our control.
