DS Twist
Log in for pricing
Why DS Twist?
Not all injection nozzles perform the same. Here's why professionals choose the DS Twist.
| DS Twist | Traditional Downstream Nozzle Set | |
|---|---|---|
| Use Downstream injector | Yes | Yes |
| Adjustable spray angle | 0–60° twist | Fixed |
| Reach from ground | Up to 60 ft | Requires high reach tip |
| Spray control on the job | Twist to Adjust | Stop and change tip |
| Low-pressure control | Adjusts down to 100 PS | Limited pressure control |
Find answers to common questions about X-Jet products, setup, and performance.

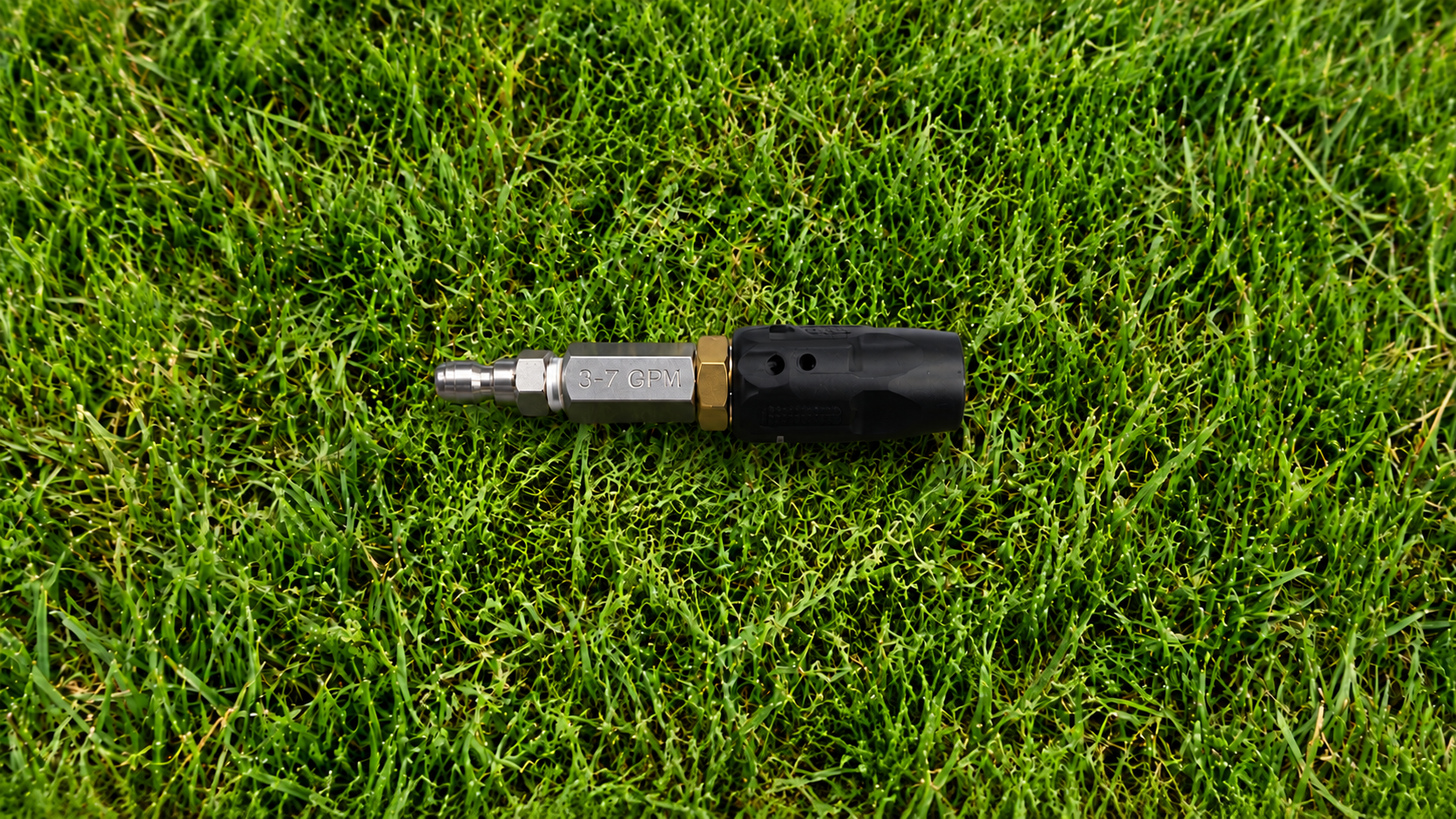

The X-Jet DS Twist (M5DS) is an adjustable low-pressure soft washing nozzle engineered to streamline house washing and high-reach building cleaning. Equipped with a standard 1/4" male quick-connect plug, it snaps onto standard pressure washing spray guns or wands. By simply rotating the outer aluminum shroud on the fly, operators smoothly adjust the spray geometry from a 0° solid pinpoint stream (for upper gables and peaks) to a 60° broad fan pattern (for broad siding). This replaces multi-tip J-Rod manifolds and reduces job fatigue.
The primary difference lies in the chemical feed location and mix concentration:
To ensure proper backpressure and reliable Venturi chemical draw, you must match the nozzle orifice size directly to your machine's Gallons Per Minute (GPM) flow rate:
Depending on your machine's GPM output and model selection, the DS Twist projects a stream from 40 to 60 vertical feet, allowing operators to wash 2 to 4 story structures safely from the ground without ladders or wands. While commercial pressure washer pumps operate at 3,000 to 4,000 PSI, the DS Twist's internal expansion chamber drops discharge pressure to under 100 PSI, making it 100% safe for soft washing vinyl siding, painted trim, and windows.
Because chemical injection occurs back at the machine rig, switching from soap application to clear water rinsing is instantaneous. Simply close your inline chemical ball valve or pull the suction line out of your chemical tank at the trailer. Water will continue flowing through the DS Twist at soft-wash low pressure, allowing you to thoroughly rinse siding using the exact same nozzle without stepping down your wand.
No. The central orifice cross-section inside the nozzle remains fixed. Rotating the outer shroud adjusts internal deflector vanes to shape the fan geometry from 0° to 60° without increasing hydraulic backpressure. As a result, the downstream injector's Venturi vacuum and chemical dilution ratio stay completely stable whether you spray a wide fan or a long-range pinpoint stream.
Because the DS Twist operates via downstream injection, corrosive chemicals enter the high-pressure hose line after the pump and unloader valve. Harsh cleaning agents like sodium hypochlorite (bleach) and surfactants never enter internal pump manifolds, brass valves, or ceramic plungers, eliminating chemical corrosion and extending pump service life.
While using a smaller GPM nozzle (e.g., a 3–7 GPM nozzle on an 8 GPM machine) forces fluid through a tighter restriction to gain 3 to 5 extra feet of height, it is strongly discouraged. The added restriction elevates backpressure inside your hose. On hose runs exceeding 100 to 150 feet, this backpressure stalls the downstream injector's Venturi vacuum, causing chemical draw to shut down completely. Always match nozzle flow ratings directly to pump flow capacity.
To ensure strong, continuous Venturi suction across your downstream injector:
Common field troubleshooting steps include:
| Issue / Symptom | Probable Cause | Recommended Solution |
|---|---|---|
| Injector stops pulling soap | Hose run > 150 ft or air leak at fitting | Shorten hose to 100 ft; check quick disconnect O-rings |
| Stream lacks height / pressure | Internal nozzle vane clogging or debris | Unscrew shroud, clean internal vanes, remove buildup |
| Soap ratio too weak (~20:1) | Worn downstream injector orifice | Replace downstream injector insert or rebuild check valve |
| Cannot switch to rinse | Chemical ball valve stuck open at rig | Install high-quality 3-way poly ball valve at injector |
